Supported boards.
Tested ESP32 boards for GhostESP, searchable by name, chip, vendor, or capability. Each card links to the vendor and lists the hardware features GhostESP supports.
Some purchase links earn GhostESP a commission at no extra cost to you, helping fund development.
Explore the catalogue
Filter by feature or vendor
Elecrow CrowPanel 1.28" Rotary ESP32-S3
ElecrowCompact 240×240 GC9A01 round IPS display with CST816D capacitive touch and rotary encoder. GhostESP adds a circular interface and USB Audio volume/mute control for Windows and Linux. Use the dedicated CrowPanel 1.28-inch Rotary build.
Buy from vendor ↗
Elecrow CrowPanel ESP32 5.79" E-Paper
Elecrow5.79-inch black-and-white SPI e-paper HMI with 792×272 resolution, dual SSD1683 controllers, 8 MB flash, 8 MB PSRAM, five navigation buttons, SD card and battery interface. Use the dedicated GhostESP 5.79-inch E-paper build.
Buy from vendor ↗
Elecrow CrowPanel ESP32 4.2" E-Paper
Elecrow4.2-inch black-and-white SPI e-paper HMI with 400×300 resolution, 8 MB flash, 8 MB PSRAM, five navigation buttons, SD card and battery interface. Use the dedicated GhostESP 4.2-inch E-paper build.
Buy from vendor ↗
Elecrow CrowPanel Advanced P4 5-inch
Elecrow5-inch CrowPanel Advanced P4 HMI with 800×480 RGB touch display, audio, Wi-Fi and BLE through the onboard C6 ESP-Hosted coprocessor. Uses the dedicated 5-inch GhostESP build, not the 7/9/10.1-inch MIPI build.
Buy from vendor ↗
Elecrow CrowPanel Advanced P4 10.1-inch
ElecrowLarge CrowPanel Advanced P4 HMI with MIPI display, touch, audio, Wi-Fi and BLE through the onboard C6 ESP-Hosted coprocessor. Supported by the v1.2+ GhostESP build.
Buy from vendor ↗
Elecrow CrowPanel Advanced P4 7-inch
Elecrow7-inch CrowPanel Advanced P4 HMI with 1024×600 touch display, audio, Wi-Fi and BLE through the onboard C6 ESP-Hosted coprocessor.
Buy from vendor ↗
Elecrow CrowPanel Advanced P4 9-inch
Elecrow9-inch CrowPanel Advanced P4 HMI with 1024×600 touch display, audio, Wi-Fi and BLE through the onboard C6 ESP-Hosted coprocessor.
Buy from vendor ↗
Elecrow CrowPanel Advance 5.0" ESP32-S3
Elecrow5-inch 800×480 IPS RGB display (ST7262, 16-bit) with GT911 capacitive touch, 16 MB flash / 8 MB PSRAM. Native CrowPanel RGB path with 16 MHz PCLK and factory GT911 configuration.
Buy from vendor ↗
Elecrow CrowPanel Advance 4.3" ESP32-S3
Elecrow4.3-inch 800×480 IPS RGB display (ST7262) with GT911 capacitive touch. Shares the 16-bit RGB bus/pinout with the 7-inch and 5-inch Advance boards; uses the same GhostESP RGB driver family.
Buy from vendor ↗
Elecrow CrowPanel Advance 3.5" ESP32-S3
Elecrow3.5-inch 480×320 SPI display (ILI9488 @ 40 MHz) with GT911 touch (I2C addr 0x14, RST 48 / INT 47, SWAPXY + INVERT_Y). SPI bus on MOSI 39 / CLK 42 / CS 40 / DC 41 / RST 2.
Buy from vendor ↗
Elecrow CrowPanel Advance 2.8" ESP32-S3
Elecrow2.8-inch 320×240 SPI display (ST7789 @ 80 MHz) with FT6x06-compatible capacitive touch. SPI bus on MOSI 39 / CLK 42 / CS 40 / DC 41; backlight fixed-on.
Buy from vendor ↗
Elecrow CrowPanel Advance 2.4" ESP32-S3
Elecrow2.4-inch 320×240 SPI display (ST7789 @ 80 MHz) with FT6x06-compatible capacitive touch. Same SPI mapping as the 2.8-inch variant; optimized for the compact HMI form factor.
Buy from vendor ↗

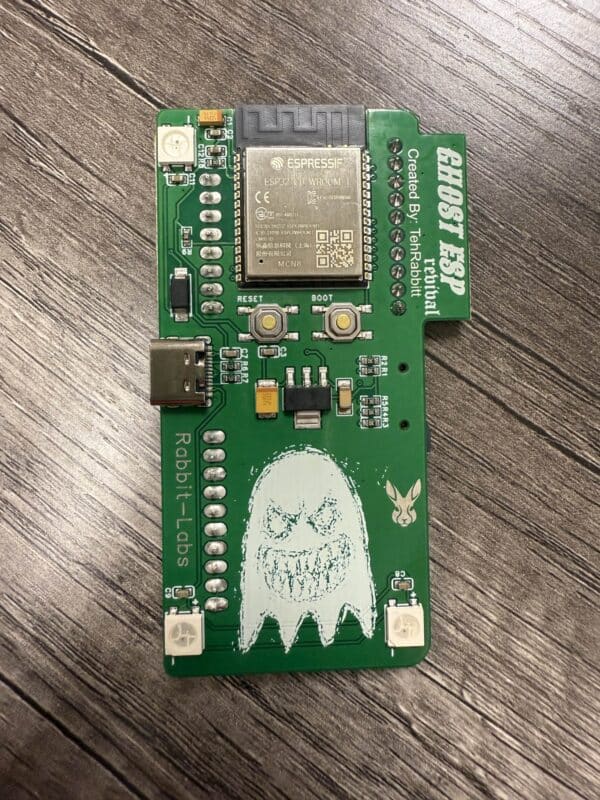

GhostBoard
Rabbit-LabsFlipper‑compatible C6 board made for Ghost ESP. SD slot, 3 RGB LEDs, GPS expansion.
Buy from vendor ↗

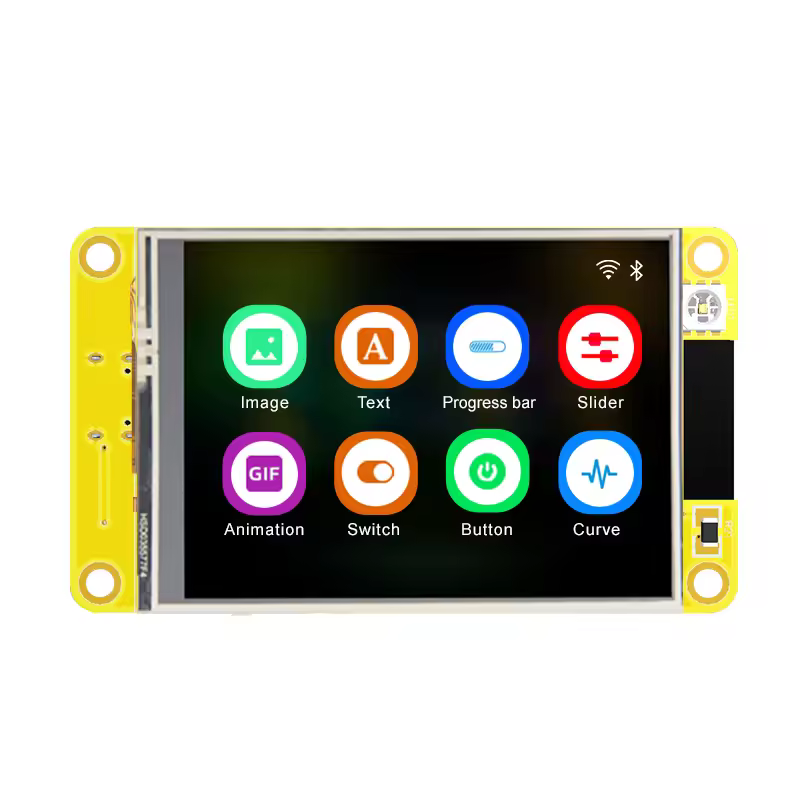

CYD2USB 2.4" C Variant
Compact 2.4" capacitive touch display board powered by an ESP32 WROOM module.
Buy from vendor ↗

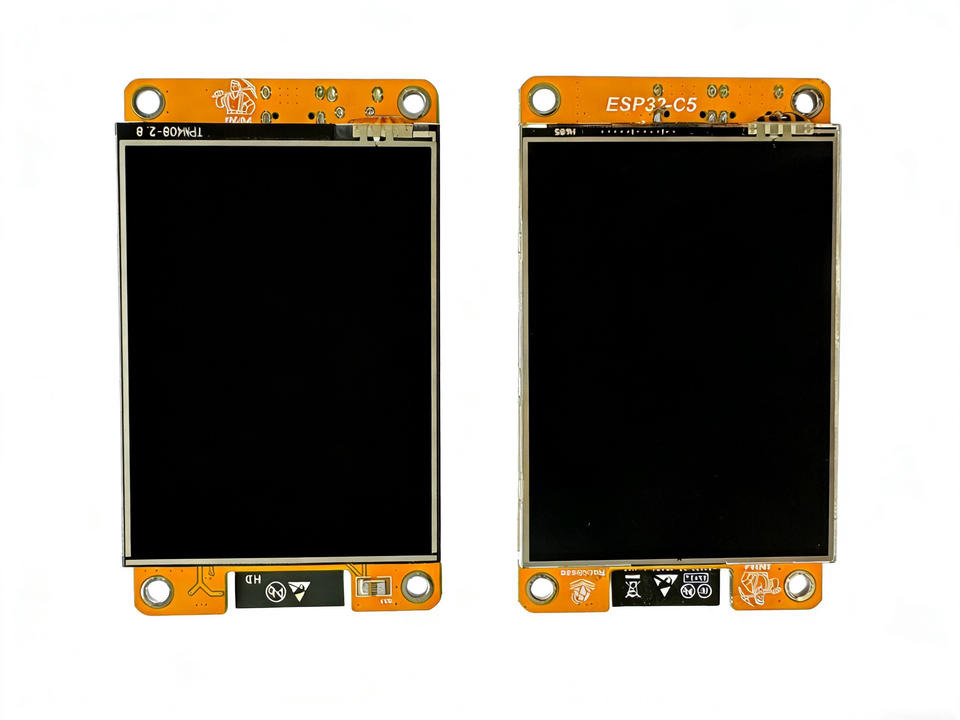

NM-CYD-C5
ESP32-C5 based Cheap Yellow Display board with 2.4" capacitive touch and 5 GHz Wi-Fi support.
Buy from vendor ↗
Ultimate Marauder
Wired HattersDual-ESP32 Marauder board by Wired Hatters with Flipper support, GPS, SD card and touch.
Buy from vendor ↗
The Banshee
Wired HattersDual-ESP32 (C5 + S3) GhostESP board with dual-band, SD storage, Ethernet, TFT + OLED displays, rotary encoder, RGB lighting, and expansion for sensors and IO.
Buy from vendor ↗

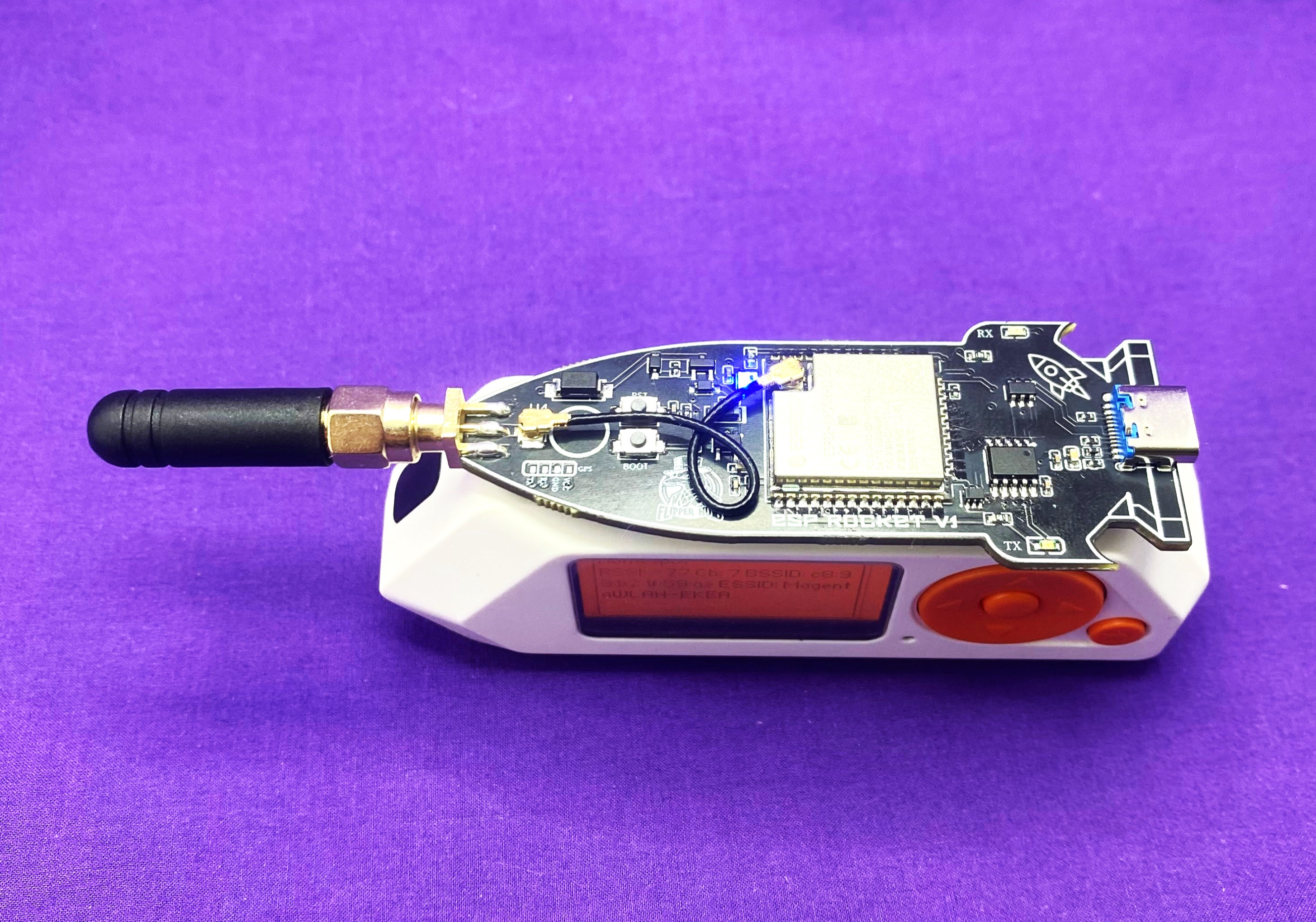

FlipperHub Rocket
Wired HattersWired Hatters’ ESP32-WROOM-UE FlipperHub Rocket with USB-C, SMA antenna, and optional GPS expansion.
Buy from vendor ↗
ESP32-S3 Cardputer
M5StackCompact keyboard-style ESP32-S3 device with on-the-go control, SD card and infrared.
Buy from vendor ↗

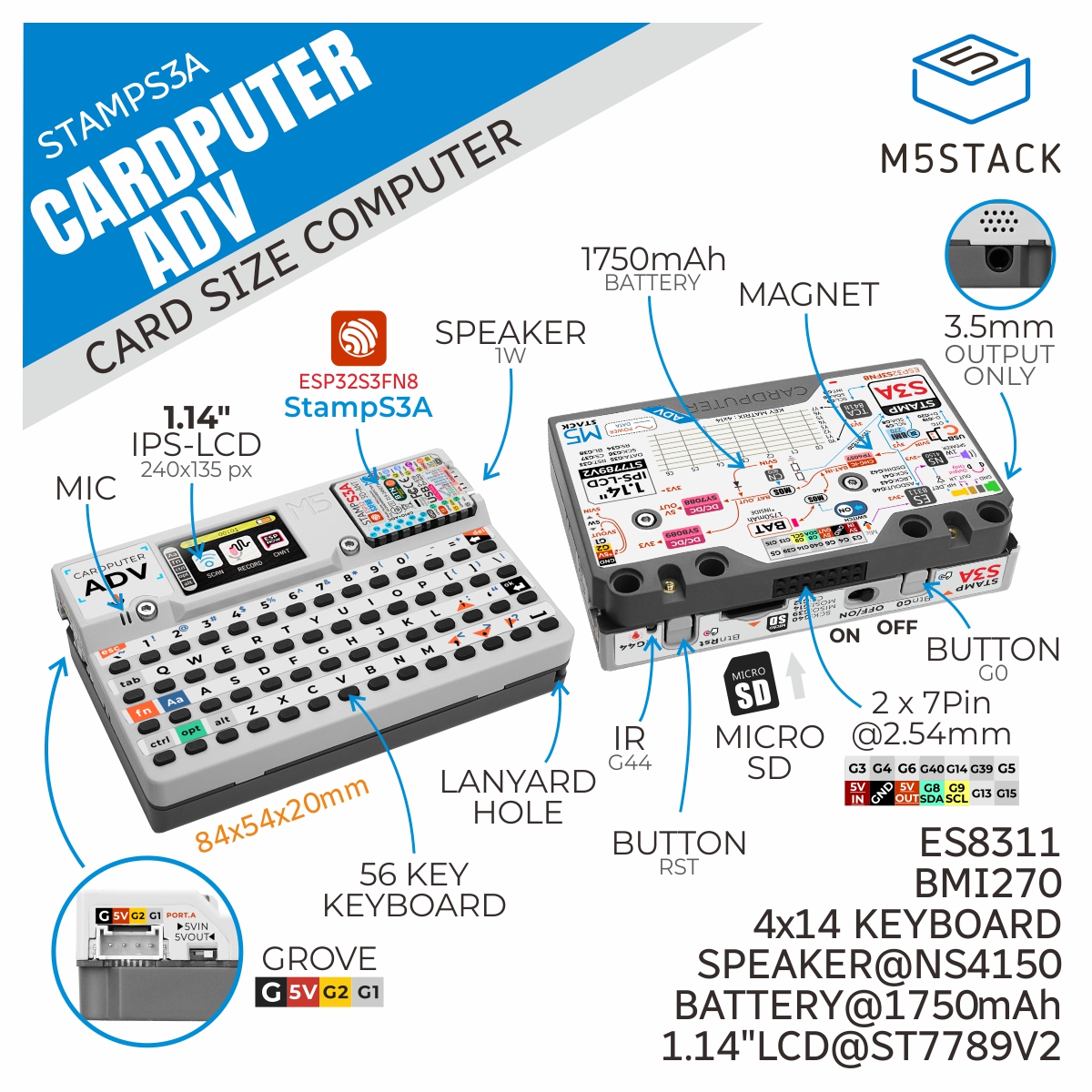

M5Stack Cardputer ADV
M5StackAdvanced ESP32-S3 Cardputer with a compact keyboard, display, SD card support, infrared, and sensor expansion.
Buy from vendor ↗
M5Stack CoreS3-SE
M5StackESP32-S3 IoT controller with a 2.0" capacitive touch display, 16MB flash, 8MB PSRAM, microSD slot, speaker and dual mics. Flashed over USB-C.
Buy from vendor ↗
M5Stack AtomS3R
M5StackPocket-sized ESP32-S3 with a 0.85" IPS display, long-range IR blaster, 9-axis motion sensing, 8MB flash and 8MB PSRAM.
Buy from vendor ↗

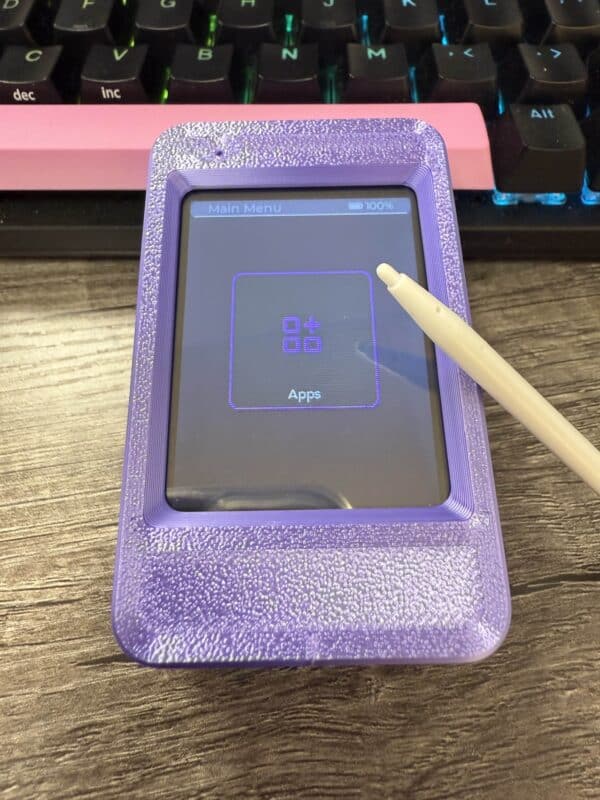

The Phantom
Rabbit-LabsESP32-based device with SD card, resistive touch display and stylus.
Buy from vendor ↗
T-Embed CC1101
LilyGoBuilt-in rotary encoder, IR, Sub-GHz and NFC with ESP32-S3 and SD card slot.
Buy from vendor ↗
LilyGo T-Display S3 Touch
LilyGoESP32-S3 development board with integrated touch display.
Buy from vendor ↗

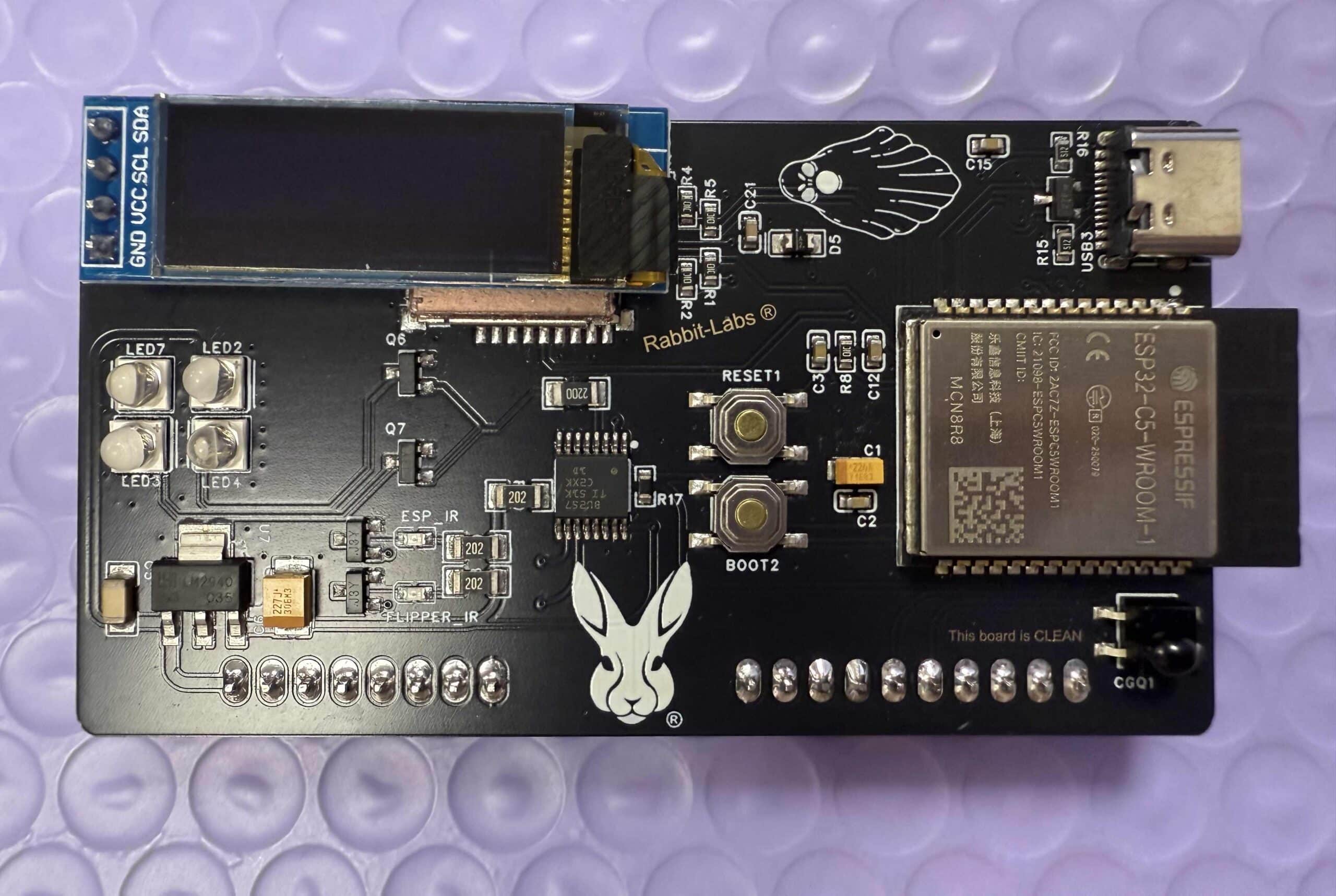

Poltergeist 5GHz WiFi Board
Rabbit-LabsESP32-C5 board built for the Flipper with dual-band WiFi, BLE spam, OLED status screen, SD slot, and a custom IR blaster/receiver designed for GhostESP use.
Buy from vendor ↗
Seeed XIAO ESP32-S3 Sense
Seeed StudioDual-core ESP32-S3 with built-in camera sensor, digital microphone, 8MB PSRAM, 8MB Flash, and SD card slot. Ideal for embedded ML, intelligent voice and vision AI.
Buy from vendor ↗
Seeed XIAO ESP32-C5
Seeed StudioThe first XIAO module with 5 GHz Wi-Fi support. RISC-V architecture with dual-band Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee, Thread). Supports Matter, HomeKit, and MQTT.
Buy from vendor ↗
Seeed XIAO ESP32S3
Seeed Studio240MHz Xtensa LX7 dual-core processor with Wi-Fi and BLE 5.0. Ultra-low 14μA deep sleep mode with lithium battery charging management. Ideal for IoT, smart homes, and wearables.
Buy from vendor ↗
Heltec WiFi LoRa 32 V3
ESP32-S3 with SX1262 LoRa and 0.96" OLED display. Compact Meshtastic-style board supported by the dedicated GhostESP Heltec V3 build.
Buy from vendor ↗Not sure which board to pick?
Ask the community for recommendations based on your use case.
